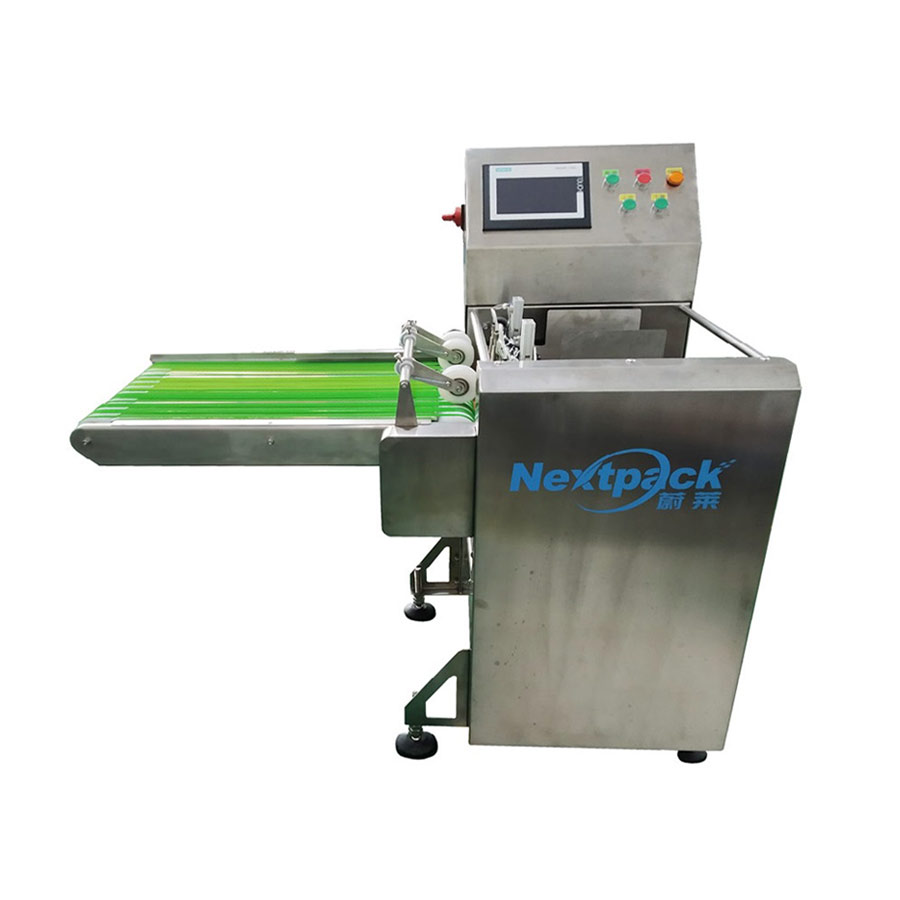

Top suction paging machine-guide conveyor
Features:
1. Adaptable materials: BOPP, OPP, PET, PE, non-woven fabric, kraft paper, etc.
2. It can be equipped with ribbon printer, ink roller printer, thermal transfer printer, inkjet printer, laser printer.
3. Diagonal pull guide device: guide the paginated bags to improve the position accuracy of coding and labeling.
4. Adaptable to bag types: self-supporting bags, M-type prefabricated bags, three-side sealing prefabricated bags, four-side sealing prefabricated bags, prefabricated bags with zipper, paper plates, etc.
5. Adsorption device: Negative pressure suction device, which can effectively ensure that the paging bags are conveyed smoothly on the conveyor belt, ensuring accurate coding and labeling positions.
6. Static elimination device: The ion wind removes the static electricity on the surface of the product, effectively avoiding the adsorption of the products due to static electricity, and ensuring the success rate of paging.
Technical Parameters:
Model number | WF220 | WF420 | WF620 | WF820 | WF1020 |
Width | 50--200mm | 100-400mm | 200-600mm | 400-800mm | 500-1000mm |
Length | 50--400mm | 100-600mm | 200-800mm | 400-1000mm | 500-1200mm |
Paging speed | 70Times/min | 60Times/min | 50Times/min | 40Times/min | 30Times/min |
Dimensions | 2000*500*950mm | 2200*700*950mm | 2400*900*950mm | 2800*1100*950mm | 3000*1300*950mm |
Work rate | 0.75KW | 0.75 KW | 1.25 KW | 1.75 KW | |
power supply | 220V 50/60HZ | ||||
Air pressure | ≥6kgf,2L/min | ≥6kgf,2L/min | ≥6kgf,4L/min | ≥6kgf,8L/min |
Paging sample:
