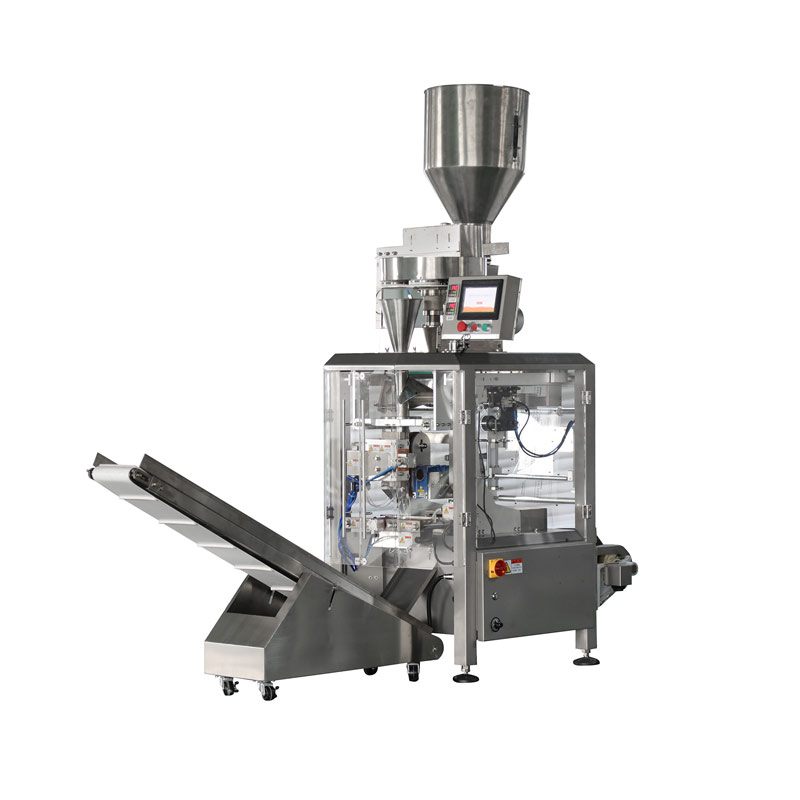

Equipment introduction:

Bag-making form: back-sealing bag, stripe-sealing.

Optional device: round hole punching/butterfly hole punching/net pattern sealing and other functions belong.

Scope of application: granular, powder, bar, spherical and other types of product materials.

Optional supporting devices: combination scale/measuring cup/screw/linear scale/vibration counting plate/discharging trailer/liquid pump, etc.

Packaging materials: PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP, etc.

Main electrical configuration and brands:

Pneumatic components (AirTAG, Taiwan AirTAG)

Temperature control module (Autonics, South Korea Autonics)

Color mark detection photoelectric eye (CNBDL, China Bai Deli)

Touch screen, servo motor, programmable controller (MO TION CONTROL)

Packaging process: film stretching-coding-bag making-metering-filling (inflating)-sealing (punching)-cutting-packaging finished product output.

Features:

1. The design of the whole machine complies with GMP standards and has passed CE certification.

2. It can be matched with combination weigher, screw, measuring cup, trailer and liquid pump to realize accurate and efficient measurement.

3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling and neat and beautiful packaging bags.

4. The whole machine adopts 3 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high.

5. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable and durable performance.

7. The whole machine adopts 3mm&5mm thick stainless steel sheet metal processing and assembly, running smoothly; and the core components are specially optimized design, and the packaging speed is fast.

Technical Parameters:
