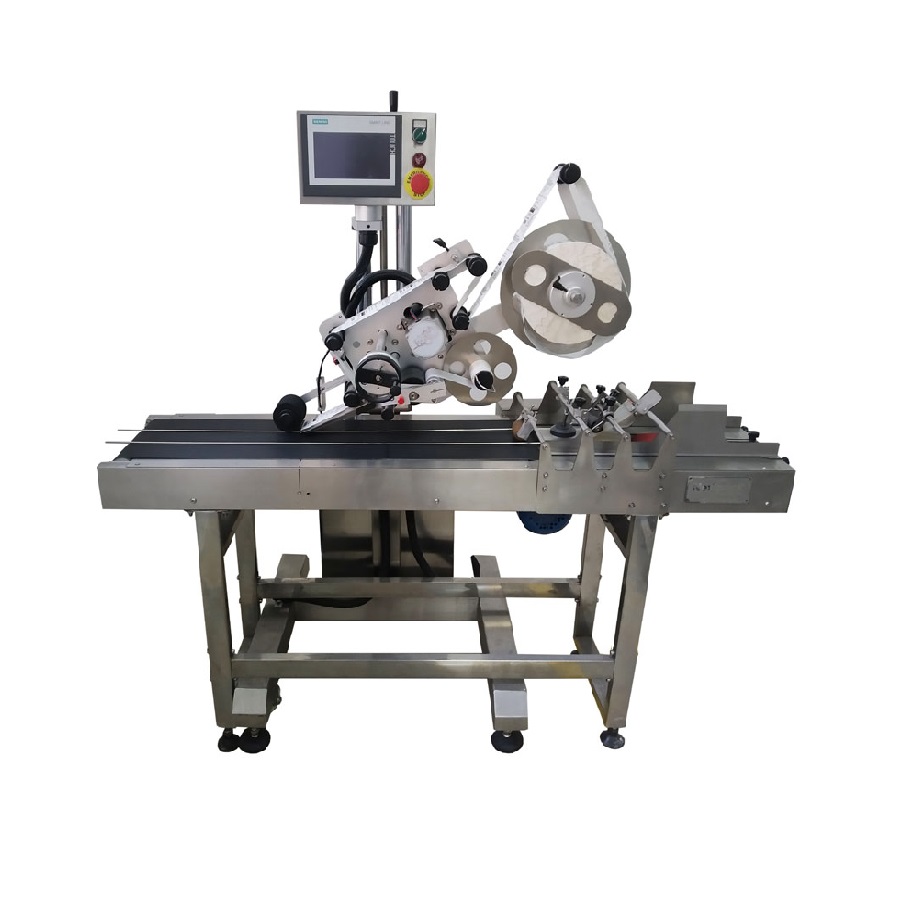

All-in-one friction paging labeling machine
Equipment introduction:
WL-F paging labeling machine can be used for a variety of materials, a variety of specifications, shapes of cards, plastics, and paper stacked products are automatically divided into single sheets and then automatically labeled, such as plastic bags, paper, paper boxes, recharge cards, After the Internet card, IP card, 200 phone card, 300 phone card and other items are automatically divided into sheets, the stickers are accurately affixed. (Anti-counterfeiting labels, barcode labels can be affixed), etc. The labeling accuracy is high, and the film has no bubbles; it has the automatic product identification function, and automatically activates different labeling heads according to different products.
Features:
Scope of objects: can be customized according to customer needs.
Carton labeling speed: according to the size of the carton, please refer to the drawing for details.
Conveyor belt width: can be customized according to the diameter of the sample bottle provided by the customer.
Bag labeling speed: other products are subject to product specifications and label sizes.
Technical Parameters:
Voltage specifications | AC200V,50/60HZ |
Power consumption | 900W |
Labeling speed | 30-100Sheets/minute |
Labeling accuracy | ±1mm |
| transfer speed | 0-50m/m |
Label specifications | H10mm-15mm,L15-300mm |
Labeling requirements | Roll Dlameter: Φ76mm Label Roll Dimeter：Φ320mm |
Weight | 200KG |
Package dimensions | 1900×800×1300mm |
Conveyor belt width | The diameter of the sample bottle can be customized according to the customer |
Labeling samples:
