Top suction paging machine-adsorption conveyor
Equipment overview:
Suction type paging machine is also called sorter, plastic bag high-speed separator, carton sorter, food bag sorter, sorter, and sorter. Suction paging machine can be
It can be used in conjunction with inkjet printers and thermal transfer printers, or can be used independently. After use, it will greatly increase the working speed of workers, save working time and labor
The production cost is greatly reduced.
Features:
1. The machine body adopts a stainless steel outer frame.
2. Adaptable materials: BOPP, OPP, PET, PE, non-woven fabric, kraft paper, etc.
3. It can be equipped with ribbon printer, ink roller printer, thermal transfer printer, inkjet printer, laser printer.
4. Adaptable to bag types: self-supporting bags, M-type prefabricated bags, three-side sealing prefabricated bags, four-side sealing prefabricated bags, prefabricated bags with zipper, paper plates, etc.

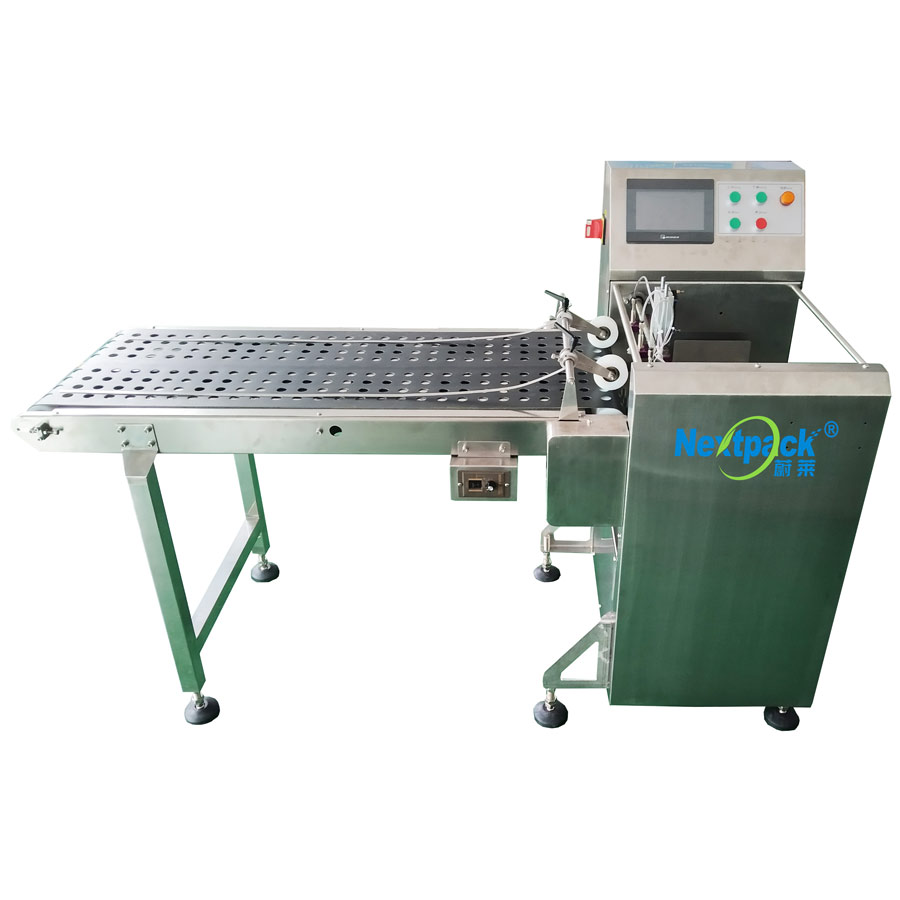

Equipment detail drawing:
Technical Parameters:
Model | WF420 |
Width | 100-400mm |
Length | 100-600mm |
Power | 0.75 KW |
Power Supply | 220V 50/60HZ |
Comprssedair | ≥6kgf，2L/min |
Speet | 70bags/min |
Dimension（L*W*H） | 2200*700*950mm |
Paging sample:
