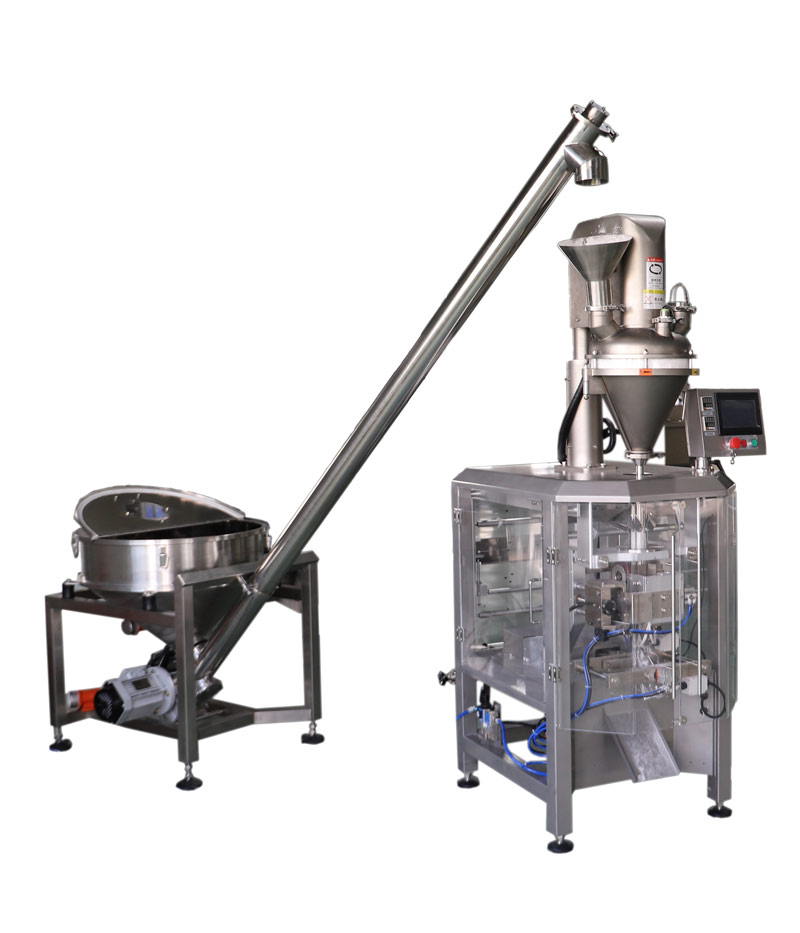

Full servo powder vertical packaging machine
Features:
1. It can be matched with combination weigher, screw, measuring cup, trailer and liquid pump to realize accurate and efficient measurement;
2. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling and neat and beautiful packaging bags;
3. The whole machine adopts 3 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;
4. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable and durable performance;
5. The whole machine adopts 3mm&5mm thick stainless steel sheet metal processing and assembly, running smoothly; and the core components are specially optimized design, and the packaging speed is fast.
Scope of application:
1. Bag-making form: back-sealed bag, striped sealing;
2. The design of the whole machine complies with GMP standards and has passed CE certification;
3. Optional device: round hole/butterfly hole/net pattern sealing and other functions belong to;
4. Packaging materials: PP, PE, PVC, PS, EVA, PET, PVDC+PVC;
5. Scope of application: granular, powder, bar, spherical and other types of product materials.
Technical Parameters:
| Model | Songchuan ZL-180SF full servo powder vertical packaging machine |
| Capacity | 20-100 Packs/minute |
| Bag size | L：50—170mm， W：50—150mm |
| Capacity | 100ml-300ml(Different weights need to replace the measuring cup specifications） |
| Number | 4A |
| Film thickness | 0.04—0.09mm |
| Control system | PLC+Servo + color touch screen PLC+Servo+Touch screen |
| Power supply | 1N+PE/50HZ/AC220V 4KW |
| Airconsumption | 0.8Mpa, 0.5?/h |
| Dimension | L1350*W1000*H500mm |
| Material | 304Stainless steel material |
| Weight | 350kg |
| Volume | 100ml+20ml |
Packaging sample:
