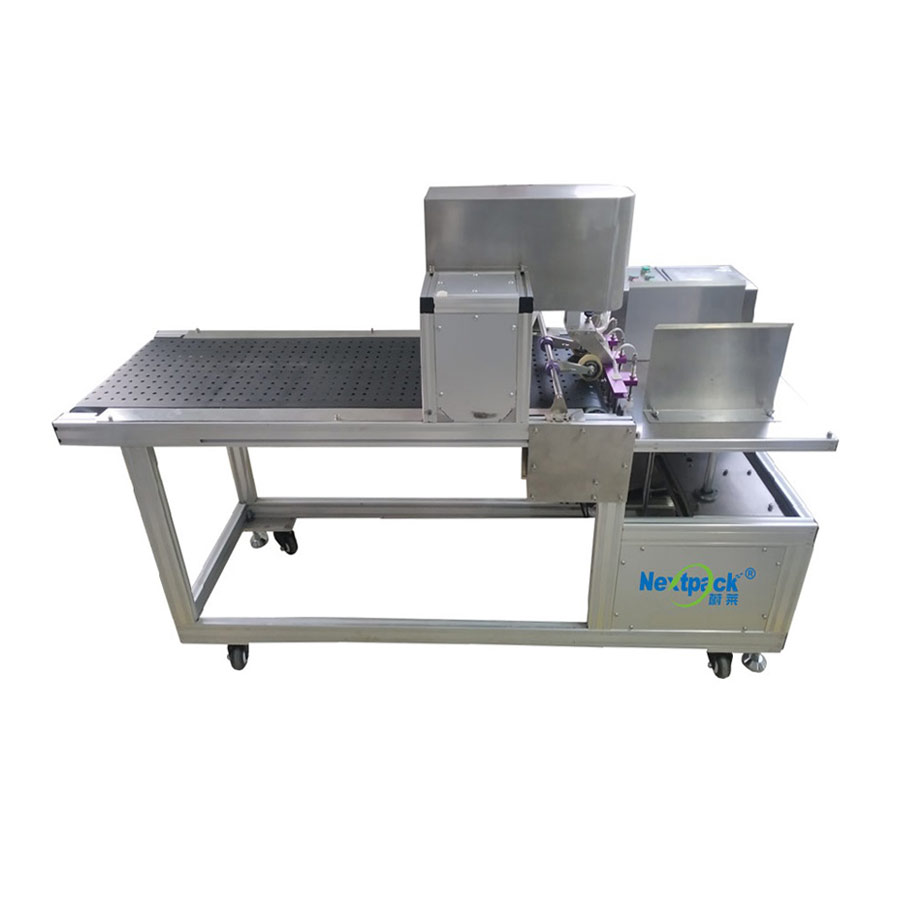

Horizontal suction type paging inkjet all-in-one machine
Equipment introduction:
The high-speed automatic sorting machine is used to automatically separate the stacks of packaging bags or cards and divide them into individual ones and pass them to the conveyor belt, which is convenient for inkjet printers or printers to print.
Spray-engraved production date, batch number, anti-counterfeiting marks, patterns, etc. So as to reduce the cumbersome manual paging, give full play to the advantages of high-speed printing by inkjet printers and laser machines, and improve
Printing efficiency. The machine body adopts an aluminum alloy outer frame, and adopts imported high-precision inverters and motors. It has high stability and is convenient for production management.
It is used for coding and coding in various industries such as medicine, cosmetics, and food.
Features:
1. The machine body adopts aluminum alloy outer frame.
2. Reasonable structural design, easy and quick replacement of wearing parts, which can reduce maintenance costs.
3. Optional accessories: automatic feeding device, paging machine separate counting stop signal source.
3. Adaptable materials: BOPP, OPP, PET, PE, non-woven fabric, kraft paper, etc.
4. It can be equipped with ribbon printer, ink roller printer, thermal transfer printer, inkjet printer, laser printer.
5. Adaptable to bag types: self-supporting bags, M-type prefabricated bags, three-side sealing prefabricated bags, four-side sealing prefabricated bags, prefabricated bags with zipper, paper plates, etc.
6. High paging speed: high-precision stepless speed regulation, high-speed automatic paging 60 per minute, which can greatly improve production efficiency.
Technical Parameters:
Model | WSSF420P |
Width | 100-400mm |
Length | 100-600mm |
Power | 0.75 KW |
Power Supply | 220V 50/60HZ |
Comprssedair | ≥6kgf ,2L/min |
Speet | 70bags/min |
Dimension（L*W*H） | 2200*700*950mm |
Coding samples:
