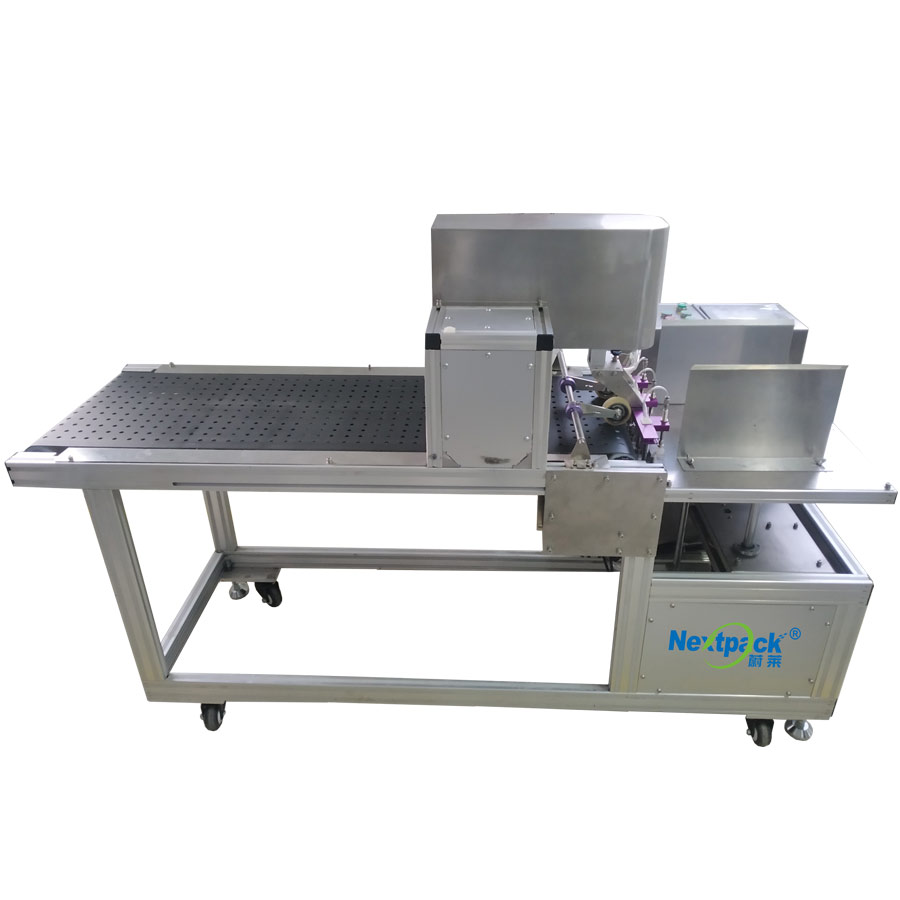

Horizontal suction paging machine
Equipment introduction:
The high-speed automatic sorting machine is used to automatically separate the stacks of packaging bags or cards and divide them into individual ones and pass them to the conveyor belt, which is convenient for inkjet printers or printers to print.
Spray-engraved production date, batch number, anti-counterfeiting marks, patterns, etc. So as to reduce the cumbersome manual paging, give full play to the advantages of high-speed printing by inkjet printers and laser machines, and improve
Printing efficiency. The machine body adopts an aluminum alloy outer frame, and adopts imported high-precision inverters and motors. It has high stability and is convenient for production management.
It is used for coding and coding in various industries such as medicine, cosmetics, and food.
Features:
1. The machine body adopts aluminum alloy outer frame.
2. Reasonable structural design, easy and quick replacement of wearing parts, which can reduce maintenance costs.
3. Optional accessories: automatic feeding device, paging machine separate counting stop signal source.
4. Adaptable materials: BOPP, OPP, PET, PE, non-woven fabrics, kraft paper, etc.
5. It can be equipped with ribbon printer, ink roller printer, thermal transfer printer, inkjet printer, laser printer.
6. High paging speed: high-precision stepless speed regulation, high-speed automatic paging 60 per minute, which can greatly improve production efficiency.
7. Can adapt to the bag type: stand-up bag, M-type prefabricated bag, three-side sealing prefabricated bag, four-side sealing prefabricated bag, prefabricated bag with zipper, paper plate, etc.
Technical Parameters:
Model | WSSF620 |
Width | 100-800mm |
Length | 100-800mm |
Power Supply | 220V/50Hz |
Power | 1.25KW |
Weight | 100Kg |
Belt width | 400mm |
Dimension（LXWXH） | 2250×1150×1000mm |
Speed | 60bage/min |
Paging sample:
