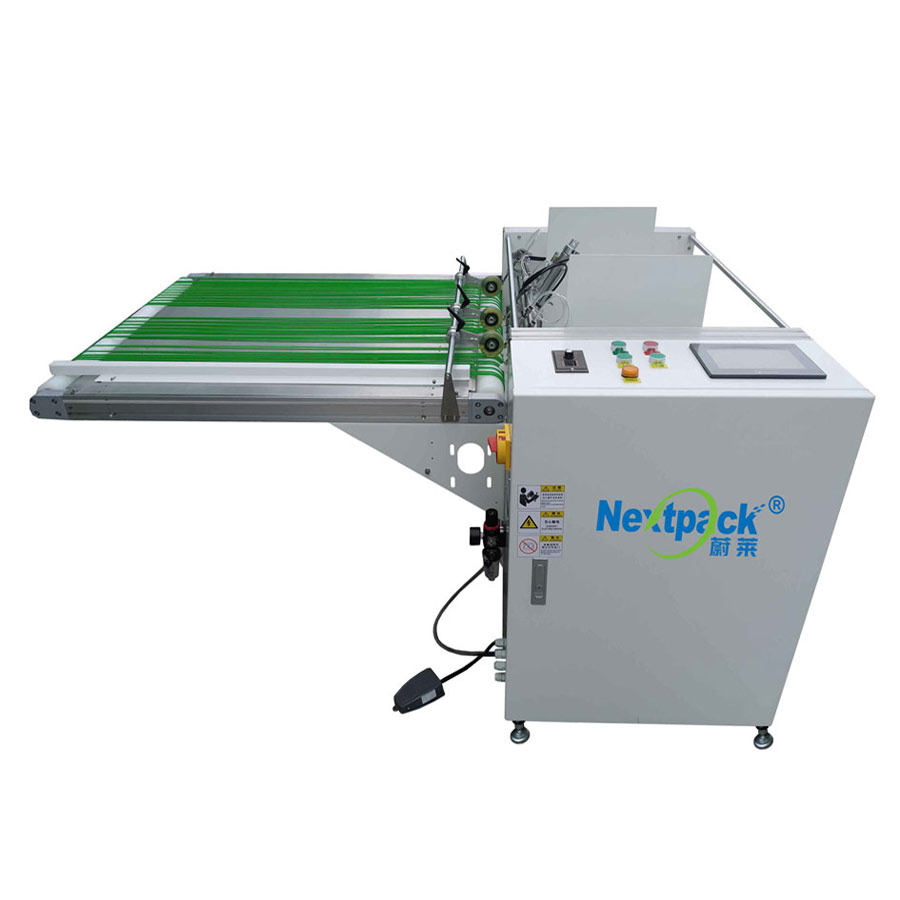

Top suction paging machine-guide conveyor
Features:
1. The machine body adopts carbon steel outer frame.
2. Optional device: diagonal pull guide device, adsorption device, anti-static device.
3. Adaptable materials: BOPP, OPP, PET, PE, non-woven fabric, kraft paper, etc.
4. It can be equipped with ribbon printer, ink roller printer, thermal transfer printer, inkjet printer, laser printer.
5. Adaptable to bag types: self-supporting bags, M-type prefabricated bags, three-side sealing prefabricated bags, four-side sealing prefabricated bags, prefabricated bags with zipper, paper plates, etc.
Equipment detail drawing:
Technical Parameters:
Model | WF820 |
Width | 400-800mm |
Length | 400-1000mm |
Power | 0.75 KW |
Power Supply | 220V 50/60HZ |
Comprssedair | ≥6kgf，2L/min |
Speet | 60bags/min |
Dimension（L*W*H） | 2800*1100*950mm |
Paging sample:
