Horizontal suction type paging labeling all-in-one machine
Equipment introduction:

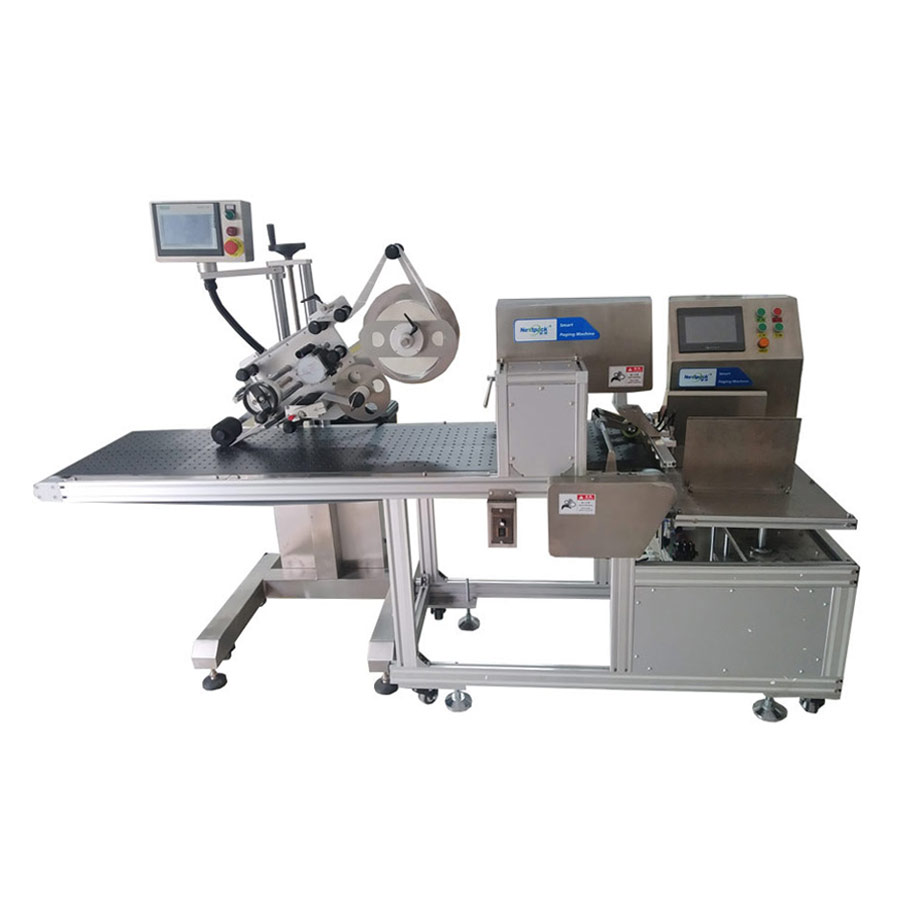

WF420T paging labeling machine can be used for a variety of materials, a variety of specifications, shapes of cards, plastics, and paper stacked products are automatically divided into individual sheets and then automatically labeled
Such as plastic bags, paper, paper boxes, recharge cards, internet cards, IP cards, 200 phone cards, 300 phone cards and other items are automatically divided into sheets, and then accurately affixed with stickers
label. (Anti-counterfeiting labels, barcode labels can be affixed), etc. The labeling accuracy is high, and the film has no bubbles; it has the automatic product identification function, which can be automatically activated according to different products
Work with the labeling head.
Features:
Labeling speed: the speed of carton labeling; according to the size of the carton, the labeling speed of the bag, other products depend on the product specifications and the label size.
Conveyor belt width: can be customized according to the diameter of the sample bottle provided by the customer.
Scope of objects: can be customized according to customer needs.
Technical Parameters:
| Power Supply | AC200V，50/60HZ |
| Power | 900W |
| Speet | 30-100Zhang/min |
| Accuracy | ±1mm |
| Conveying speed | 0-50m/m |
| Label Specification | H10mm-15mm,L15-300mm |
| Volume label requirements | Roll Dlameter:Φ76mm label roll Dimeter：Φ320mm |
| Weight | 200KG |
| Dimension（L*W*H） | 1900×800×1300mm |
Labeling samples:
